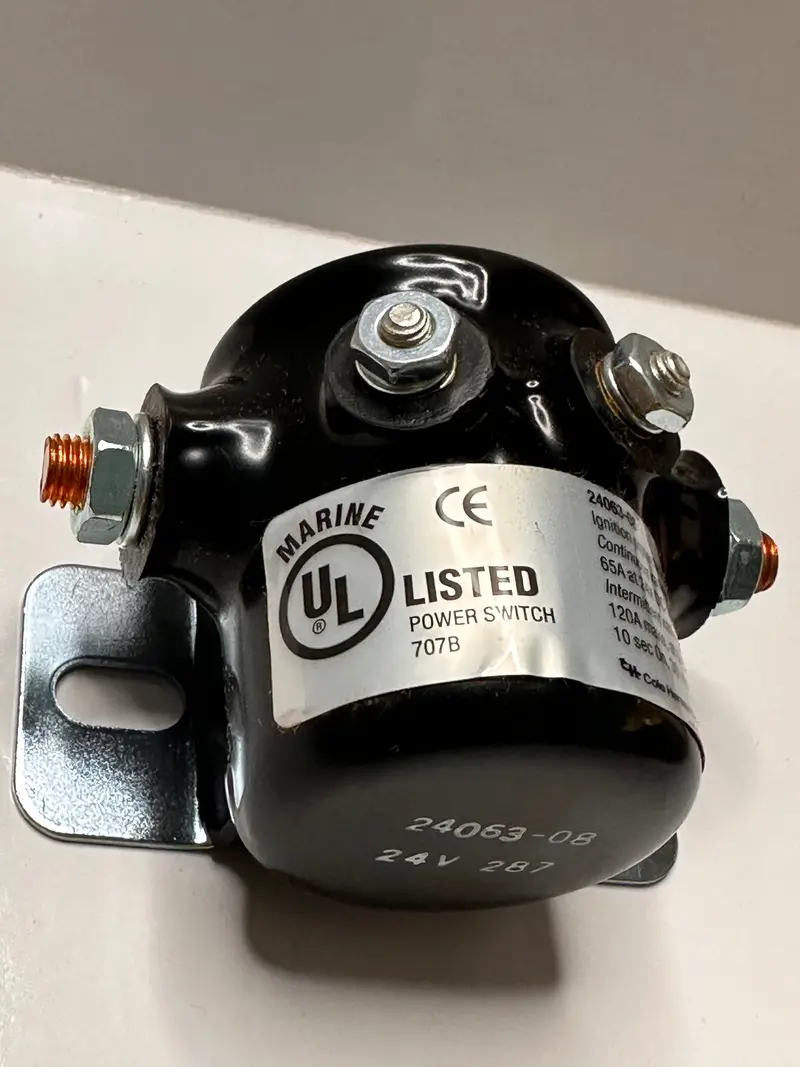

24063-08 SPST Solenoid Relay – 24V, 65A Marine-Grade Electromagnetic Switch

Description

The 24 V 65 A Continuous-Duty SPST Series Insulated Solenoid Relay (24063-08) is designed with a PVC-coated plated steel housing, single-pole, single-throw (SPST) circuitry, and normally open contacts.

• 65 A continuous current rating
• 120 A make, 65 A break at 10 seconds on, 30 minutes off
• 24 V coil and a coil impedance of 71 ohms
• Insulated coil design electrically isolates the studs from the housing
• SPST circuitry and normally open contacts
• Plated steel housing with a PVC coating is sealed to an IP66 rating
• Two large 5/16″-24 copper power studs and two small #10-32 steel coil studs (control circuit) are heavy and durable
• Flat bracket
• Included hex nuts and lock washers are assembled.
• UL & CE approved.
